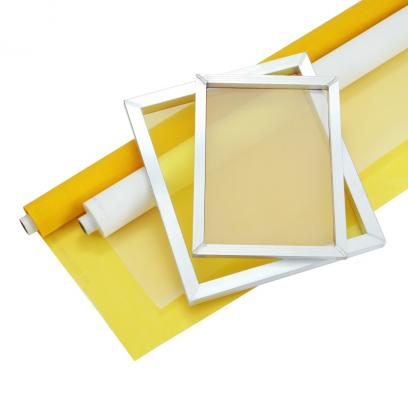

Aluminum Screen Printing Frame
86 White Mesh 100micron Thread Aluminum Screen Frame 20x24“OD
NameAL20＂x24＂Aluminum Screen FrameMaterialAluminumprofilewith polyester Screen Printing MeshMesh count86mesh inchFrame s
Products Description
| Name | AL20＂x24＂Aluminum Screen Frame |
| Material | Aluminum profile with polyester Screen Printing Mesh |
| Mesh count | 86mesh/inch |
| Frame size | 20X24”OD |
| Profile | 35mmx35mmx1.4mm |
| Stretched white Mesh | Mesh count ≤ 160 |
| Stretched yellow Mesh | mesh count ≥180 |
| Frame Outside Dimension: | 20”x24” |
| Frame Inside Dimension: | 17.3”x21.3” |
ADVANTAGE:
Constructed with 6063 T5 Alloy, Argon arc welding securely to ensure a water tight seal.
Ground smooth for flatness and handling easily.

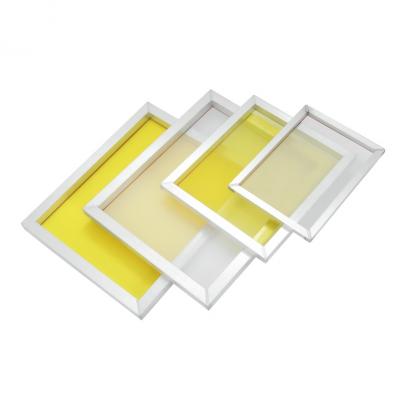

Products Specification
|
Popular Frame Size |
Profile Size |
Mesh Count |
|
18” x 20’’ |
35*35*1.2/1.4mm (1-3/8’’ x 1-3/8’’) |
32T-64, 32T-100, 43T-80, 64T-55, |
|
20” x 24’’ |
35*35*1.2/1.4mm (1-3/8’’ x 1-3/8’’) |
|
|
23” x 31’’ |
38*38*1.4/1.6mm (1-1/2’’ x 1-1/2'') |
|
|
25” x 36’’ |
38*38*1.6/1.8mm (1-1/2’’ x 1-1/2'') |
|
|
Remarks: Special sizes are customized |
||
Products Application
Which is widely used for the garments, cloth, T-Shirts, electronics, glass, ceramics, paper, outdoor advertisement, large format printing machine or manual work. The aluminum profile is done by mature argon arc welding. Anti corrosion, oxidation, distortion; smooth surface and easy to operate.
